LAB V1, LAB V2, LAB V6 Series:
Function and features:

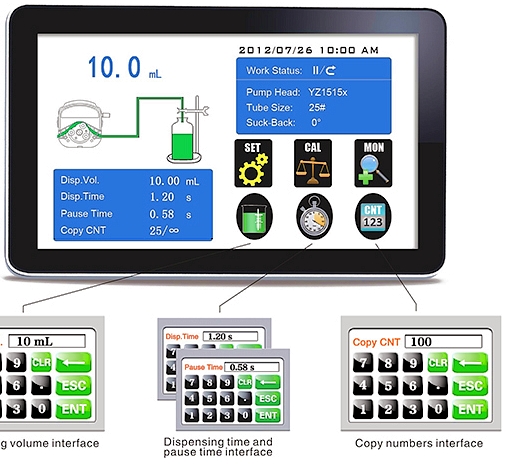

4,3” LCD touch control display and touch panel
Dynamic display transferring status, Flow rate data, Sezting parameters and system configuration display on same screen
3 working mode: Fixed volume metering, fixed time and volume, timer start and stop, meet different transferring and dispensing request
Intelligent calibration function and on line micro adjusting functions
Communication:
RS232, RS 485, Modbus, passive and active switch for remote control
Lab F3 Series:
Function and features:
4,3” LCD touch control display and touch panel
Dynamic display transferring status, Flow rate data, Can preset dispensing volume, dispensing time, pause time and copy numbers.
The pump can store up to 60 commonly used filling modes
Back suction angle setting, avoid liquid to drop off when the pump stops working
Intelligent calibration function and on line micro adjusting functions
Communication:
RS232, RS 485, Modbus, passive and active switch for remote control
SS Series:
Function and features:
Full stainless steel housing with internal double deck isolation structure. All boards are treated with conformal coating
Three kinds of dispensing modes: time dispensing, copy dispensing, volume dispensing, touch screen operation, flow rate display, flow calibration, accumulated the volume and times, intelligent temperature control, expert operation system, reversible direction, start/stop, full speed(fast cleaning and empty), state memory (power-down memory).
All pump drive can be fitted with mono and multi channel pump head (up to 12 channels)
External control:
Foot switch, external control start and stop, external control direction, with isolation, 5V,12V,24V level input, 0-5V/10V,4-20mA,0-10KHz control speed,RS485 interface, support MODBUS communication protocol.
Peristaltic pump with LCD Touch panel control interface.

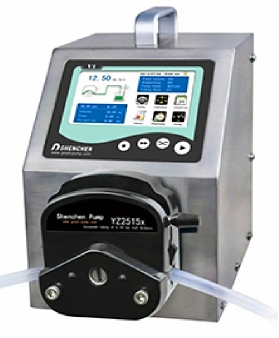

Peristaltic pump with LCD Touch panel control interface and stainless steel housing
