Shine has three series of ion chromatograph: laboratory IC, portable IC and on-line IC.
The new D-series laboratory IC have been greatly improved in instrument stability, intelligence, convenience, functional diversity, and play an important role in the detection of common Anions, Cations and trace ions.
Portable IC can meet the needs of rapid on-site detection of unexpected events. lt not only keeps the accuracy of laboratory IC, but also makes up for the application defects of laboratory IC with the characteristics of portable, on-site and rapid detection.
On-Line water quality IC and On-Line atmospheric IC perfectly realize on-line pretreatment, automatic sampling, automatic data processing and other functions, which can continuously detect atmospheric and water quality.
CIC-D120 is a high-stability ion chromatograph with upgrade circuit. It can be compatible with external equipment such as amperometric detector, UV detector, and ultraviolet post-column derivatization device and so on. Using Shenghan leading IC column technology, the separation of anion, cation, cyanide, iodide, sugar and small molecular organic acids can be realized.
It is widely used in the fields of environment, disease control, food, chemical industry, electronics, mining and metallurgy.
Technology Advantage:
Temperature-control bipolar conductivity detector (patent CN 202033335W)
Greater detection range and better accuracy of analysis;
Built in circulating 3D constant temperature technology
( patent CN 204259917U )
Temperature stability time is less than 30 min, ensuring the accuracy and reliability of test data;
The world's leading full-range series of ion chromatographic columns (patent CN 105126936A; CN 104788603A)
High efficiency, large capacity, satisfying the detection of various ion;
Self-regenerating electrolytic micro-membrane suppressor (patent CN 102735792A)
High pressure resistance, small dead volume and highly responsive to signals;
Observatory intelligent workstation
Integrated control, compatibility for a variety of instruments, customized images.
Technical Parameter:
Pump: Maximum Pressure: 35 MPa
Pressure Display Accuacy: 0.1 MPa
Flow Rate Range: 0.001-9.999 mL/min
Injector
Maximum Pressure: 35 MPa
Power Requirements: 150 W
Dimensions (L x W x H):350 x 470 x 510 mm
Net Weight :26 kg
Net Weight :32 kg
Conductivity Detector
CeIL Volume: 0.8 ul
Detection Range:0 – 45'000 uS/cm
Baseline Noise: < 0.05 %FS
Baseline Drift: < 3% FS/30min
Temperature Range: Room temperature +5 - 60°C
Maximum Pressure: 10.0 MPa
Electrochemical Detector
Power-up Diagnostics: Optics and electronic diagnostic routine
Power-up Wavelength Verification: Automatic on power up via internal holmium filter and D2 lamp.
5-Point Wavelength Calibration: On demand via internal holmium filter and D2 lamp
Safety & maintenance: Leak detection, Diagnostics, Error detection
Dimensions: 385 X 160 X 565 mm (width X height X depth)
Line Voltage : 100-240VAC, ±10%, 50/60Hz, ±5%, 100W
Modular analytical IC D120

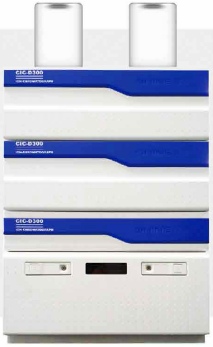

CIC-D300 is a ion chromatograph with dual-channel system design. It has stable performance and powerful function.
The workstation of the observatory realizes the integration of the two-channel workstation, which is easy and fast to operate and doubles the work efficiency.
One machine can meet the detection requirements of environment, food, chernical industry, electric power, disease control, electronics, mining and metallurgy and other fields.
Technology Advantage:
• Cation and anion dual-channel system, with both channels operating independently without disturbing each other. It can realize the simultaneous detection of anions and cations;
• Eluent thermal buffer system in which eluent enters into the columns after preheated, to avoid bubbles generated from rapid heating;
• Intelligent flow path mode, one-key operation to complete flow path switch, automatic clearing to save time and labor;
• Built-in low-pressure degassing technology to eliminate bubble interference for more stability;
• The world's leading full-range series of chromatographic columns able to detect of ions with varied compositions.
Technical Parameter:
Pump: Maximum Pressure: 35 MPa (PEEK)
Pressure Display Accuracy: 0.1 MPa
Flow Rate Range: 0.001- 9,999 mL/mn
Conductivity Detector
Cell Volume: 0.8 uL
Detection Range: 0 – 50’000 uS/cm
Temperature Range: Room temperature +5 - 60°C
Controlling Temperature Accuracy: ±0.01°C
Maximum Pressure: 10Mpa
Built in Eluent Generator
Eluent Types: KOH/NaOH/MSA
Eluent Concentration Range: 0.1-100 mM
Concentration Increment: 0.1mM
Flow Rate Range: 0.1-3 mL/min
Pressure: 5 MPa – 20 MPa
Dimensions (L x W x H) : 500 x 500 x 160 mm
Power Requirements: 350 W
Net Weight: 48 kg
Modular analytical IC D160
CIC-D160 is a high-stability ion chrornatograph with upgrade circuit technology, which can detect anion, cation, cyanide, iodide, sugar and small molecular organic acids. It is widely used in the fields of environment, disease control, food, chemical industry, electronics, mining and metallurgy.
Technology advantage:
Bulit in eluent generator, free from configuring eluent, with gradient elution available
High pressure resistance, small dead volume, highly responsive to signals.
Built-in Low-pressure degassing technology to eliminate bubble interference for stability
High pressure resistance, small dead volume, highly responsive to signals
Modular design, convenient to assemble and disassemble, easy to operate;
Optional intelligent automatic injection system for large sample volumes, which features automatic dilution to save labor and time;
Work across a variety of detectors, to expand the scope of applications of ion chromatography.
Technical Parameter:
Pump: Maximum Pressure: 35 Mpa (PEEK)
Pressure Display Accuracy: 0.1 MPa
Flow Rate Range: 0.001-9.999 mL/min
Power Requirements: 150 W
Dimensions (L x W x H): 350 x 470 x 650 mm
Net Weight: 34kg
Gross Weight: 40 kg
Conductivity Detector:
Cell Volume: 0.8 uL
Detection Range: 0-50’000 uS/cm
Baseline Drift: < 3% FS/ 30min
Temperature Range: Room temperature 5 – 60 °C
Maximum Pressure: 10 MPa
Built-in Eluent Generator
Eluent Types: KOH/NaOH
Eluent Concentration Range: 0.1 – 10 mM
Concentration increment: 0,1 mM
Flow Rate Range: 0, 1 - 3.0 mL /min
Pressure: 5 Mpa – 20 MPa
Modular analytical IC D300
Portable IC not only keeps the accuracy of laboratory IC, but also makes up for the application defects of laboratory IC with the characteristics of portable, on-site and rapid detection.
Avantage:
Powerful data processing system and Iconic display, customizable interface, integration of instrument control, data analysis and processing,data sharing module for on-site and remote data sharing through 4G network;
Quick columns for 5 min rapid detection Original quick columns for on-site quick detection of anions and cations;
Intelligent flow path cleaning makes easier cleaning The flow path is designed with a switching valve for free switch of eluent bottles and pure water bottles;
WIFI communication, real-time operation Being equipped with a tablet/laptop makes real-time operation more flexible and convenient.
Upgrade supported dual detectors ( conductivity detector and amperometric detector) to meet the needs of different industries.
Technical Parameter:
Maximum Pressure: 35 Mpa (PEEK)
Flow Rate Range: 0.001~9.999 mL/min
Flow Accuracy: ± 0.5%
Flow Repeatability : RSD ≤0.1%
Injection Valve
Maximum Pressure: 35 Mpa controlled by stepper motor
Power Requirements: 24V (DC)
Column Heater
Temperature Range: Room temperature +5~ 60°C,Temperature Stability: ≤0.05°C/h
Suppressor (anion/cation) : Bearable Pressure: 6 Mpa, Dead Volume: ≤ 30uL
Conductivity Detector: Cell Volume: ≤ 0.8μL, Measure Range: 0~45’000 μS/cm (adjustable)
Controlling Temperature Range: Room temperature +5~60°C (adjustable)
Maximum Pressure: 10 MPa
Baseline Noise: ≤ 0.5%FS
Baseline Drift: ≤ 20% FS/30min
Pressure Range: 5 MPa to 20 MPa
Panel Computer: Display Screen:12.3 inch
Pump
Maximum Pressure: 35 Mpa (PEEK)
Pressure Display Accuracy: ≤0.1 MPa
Flow Rate Range: 0.001~9.999 mL/min
Injector
Maximum Pressure: 35 Mpa (PEEK)
Conductivity Detector
Cell Volume: ≤0.8μL
Detection Range: 0~45000 μS/cm
Baseline Noise: ≤0.001μS
Baseline Drift: ≤0.001μS
Detection Resolution: ≤0.0020 nS/cm
Electronic Noise: 0.02 nS
Temperature Range: Room temperature +5 ~ 60°C
Maximum Pressure: 10.0 MPa
Power Requirements:150 W
Dimensions (L x W x H ): 350 x 470 x 510 mm
Net Weight: 26 kg
Self-regenerating electrolytic micro-membrane suppressor
(patent CN 102735792A)
High pressure resistance, small dead volume and highly responsive to signals
Autosampler
Sound pressure level: LeAq < 70 dB
Working temperature: 10 - 40°C
Humidity: 20 - 80% RH
Safety and EMC compatibility: According to EC-directives; CSA (UL) approved
Power requirements: 95 - 240 Volt AC ± 10%; 50/60 Hz; 200VA
Sampling:
Sample capacity: 2 Micro Well Plates according to SBS standards; 96-well high/low
Loop volume: 1 - 5000 µL programmable, 10 mL loop optional
Dispenser syringe: 500 µL standard or 2500 µL for Prep option
Vial detection: Missing vial/well plate detection by sensor
Headspace pressure: Built-in compressor, but only for vials with septa
Switching time injection valve: Electrically < 100 msec
Piercing precision needle: ± 0.6mm
Wash solvent: External wash solvent bottle (bracket optional)
Wetted parts in flow path: SS316, PTFE (teflon), ETFE (tefzel), VESPEL, PCTFE (Kel-F), optional: PEEK
Injection cycle time: < 60 sec. in all injection modes for 1 injection ≤ 100 µL including 300 µL wash / < 20 sec in partial loopfill mode for 1 injection of 10µL including 500 µL wash
Modular analytical IC D180
Pump
Maximum Pressure: 35 Mpa (PEEK)
Pressure Display Accuracy: ≤0.1MPa
Flow Rate Range:0.001~9.999mL/min
Conductivity Detector
Cell Volume: ≤0.8μL
Detection Range: 0~50000μS/cm
Detection Resolution: ≤0.0020nS/cm
Electronic Noise: 0.02nS
Maximum Pressure: 10.0MPa
Built-in Eluent Generator
Eluent Types : KOH/MSA
Eluent Concentration Range : 0.1-100mM
Gradient Accuracy: 0.2%
Flow Rate Range:0.1-5.0mL/min
Pressure: ≤ 30MPa
Power Requirements: 150W
Dimensions (L*W*H*): 500*360*550 mm
Net Weight: 32 kg
