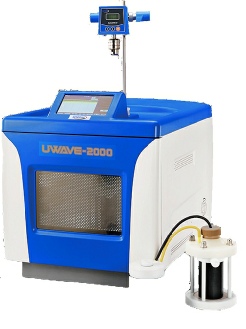

UWave - 2000

Multifunctional Microwave Chemistry Reaction Workstation

Integrate the atmospheric pressure and pressurized reaction, microwave, ultrasonic wave and ultraviolet irradiation, giving full flexibility.

Including a 7-inch color LCD touch screen, intelligent  software, full safety functions and a remote control.

Maximum reaction volume of  2000 ml open vessel and 500 ml closed vessel.

Technical parameters

Power supply

 220-240VAC 50/60Hz 9A

Microwave source

2450MHz, 0-1000W, continuous, non-pulse and automatically adjustable along with the temperature program, PID technology

Microwave oven chamber

Large volume, 316L stainless steel chamber, applied with multi-layer anticorrosive PFA Teflon spray inside and outside

Temperature measuring and control system

 Dual-channel temperature detection DTD technology, switchable control. Infrared temperature sensor range 0~900°C, precision ±1°C, PT-100 resistor temperature sensor range 0~250°C, precision ±1°C

Pressure measuring and control system

Piezoelectric crystal pressure sensor, pressure control range: 0 ~ 5 MPa (750 psl), precision of ±0.01 MPa

Working temperature

Standard configuration instrument’s maximum operating temperature is 300°C and the maximum theoretical operating temperature is 900°C(peculiar configuration). The standard maximum working temperature of high-pressure reaction is 230°C.

Working pressure

The standard maximum working pressure of high-pressure reaction is 2 MPa, with constant pressure control valve, and constant pressure value of 2 MPa.

UV light source system

It can be equipped with two sets of ultraviolet light, with UV power of 300 W and the dominant wavelength of 365 nm (standard); UV power of 100 W and the dominant wavelength of 254nm (optional)

Ultrasonic system

Immersion ultrasonic launcher, with adjustable scope of ultrasound power: 0 - 800 W, frequency of 28 KHZ, and automatic frequency sweeping and frequency locking

Stirring system

Digital constant speed mechanical stirring, with rotation speed of 30 - 1600 rpm. It can realize real-time speed regulation and displays ±10 r/grade, with torque of 300 Nm. It can stir clockwise or anticlockwise; Built-in magnetic stirring rotation speed of 0~ 800 rpm, speed program is adjustable and of real-time display

Software system

With Windows software and 7-inch color LCD touch screen, it can make accurate setting and real-time display of various parameters and curves, and can transmit the reaction parameters and curves by connecting with the computer, and record and realize the control or change of each reaction process unlimitedly

Video system

Color image recording system is equipped, which can realize real-time display of reaction process through 7-inch color LCD screen. And it can realize the transmission and recording by connecting the computer.


USB 2.0 Serial port

Exhaust system

Oven chamber is equipped with high-speed hot blast fan, with blast capacity of 3 m3/min. 3-gear speed change will be made automatically according to the reaction situation

Atmospheric pressure reaction vessel

 Standard 50 ~1000 ml high borosilicate glass reaction vessel and condensation, reflux, charging accessories, optional 2000 ml high borosilicate glass vessel, optional 50~1000 ml quartz reaction vessel

High pressure reaction vessel

100ml, 200ml and 500ml TFM high pressure digestion inner vessel,  aerospace composite fiber explosion-proof outer vessel, high-strength alloy frame

Working environment temperature/humidity

0~40°C /15~80% RH

Physical size ( W x d x h ):

500 x 625 x 580 ,  48kg

Large and clear 7” touch screen, all the instrument is monitored here

Include a video display on what’s going on in the reaction chamber
