NP 7010  serie HPLC prep instrument

 including two high flow double piston floating plunger pump from 0,1 to 100 ml /min, accuracy 0,5%, max 200 bar,  UV Vis detector Model NU3001 , 190 to 700 nm, range up to 3 AUFS, ajustable flow cell from 1 to 5 mm optical path, and 1/16” standard tubing connection.

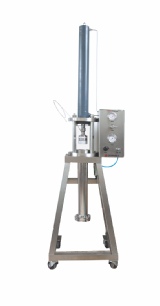

Complete with axial compression 50 x 650 mm column, model  DAC-HB50  using down packing technology and air booster pressurized axial piston system.

NP 7030  serie HPLC prep instrument

 including two high flow double piston floating plunger pump from 0,1 to 300 ml /min, accuracy 0,5%, max 150 bar,  UV Vis detector Model NU3000C, 190 to 700 nm, range up to 3 AUFS, ajustable flow cell from 1 to 5 mm optical path and 1/8” standard tubing connection.

Complete with axial compression 80 x 650 mm column, model  DAC-HB80 / 100  using down packing technology and air booster pressurized axial piston system.

NP 7060  serie HPLC prep instrument

 including two high flow double piston floating plunger pump from 0,1 to 600 ml /min, accuracy 0,5%, max 150 bar,  UV Vis detector Model NU3000C, 190 to 700 nm, range up to 3 AUFS, ajustable flow cell from 1 to 5 mm optical path and 1/8” standard tubing connection.

Complete with axial compression 150 x 650 mm column, model  DAC-HB150  using down packing technology and air booster pressurized axial piston system.

Parameter

DAC-HB50

DAC-HB80/100

DACHB150

Column diameter

50 mm

80 / 100 mm

150 mm

Column length

650 mm

650 mm

650 mm

Column inner wall roughness

< 0,1 um

< 0,1 um

< 0,1 um

Packing height

450 mm

450 mm

450 mm

Column design pressure

< 25 MPa

< 25 MPa

< 25 MPa

Working pressure

< 20 MPa

< 20 MPa

< 20 MPa

Hydro cylinder pressure

< 30 MPa

< 30 MPa

< 30 MPa

Column en cap connection

Chain clamp locking

Chain clamp locking

Chain clamp locking

Wetted material

SS316L, PTFE, PEEK, Teflon

SS316L, PTFE, PEEK, Teflon

SS316L, PTFE, PEEK, Teflon

Hydraulic cylinder material

SS 304

SS 304

SS 304

Rack material

SS 304

SS 304

SS 304

Packing method

Down packing

Down packing

Down packing

Dimension

600 x 600 x 1500 mm

600 x 600 x 2250 mm

600 x 600 x 2300 mm

HANBON

Prep HPLC manufacturer propose large prep system including high flow high pressure pump and performing detector especially tailored for preparative chromatography.

Different column packing system using axial compression technology can be provided , depending on your separation quantity.

The instrument can be controlled manually or by using the Data Apex Clarity  software.

Prep HPLC  systems are proposed at very affordable price,  contact us !

Ask for info
