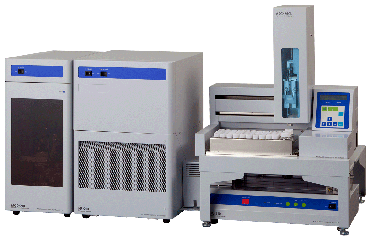

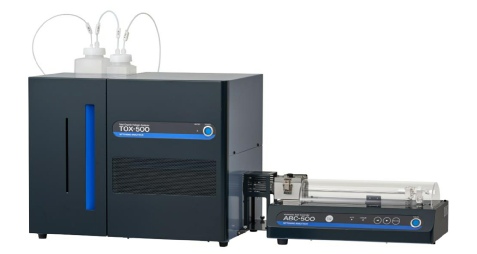

The New TOX 500 is a Total Chlorine and Sulfur analyzer using oxidative combustion microcoulometry.
The Model TOX-500 follow the tradition of quality established by the TOX -100, TOX-300 and sets the standard for performance for Total Chlorine/Sulfur and Nitrogen Analysis.
Using a simple two piece titration cell, a programmable Auto Boat Controller (ABC) and a 50-position XYZ Autosampler, you get a fully automated system.
The instrument integrate a fully automated gas flow control, driven by the new software and the deodorizing unit is now included to the package.
Easy to use with a user’s friendly software, it’s the ideal analyzer for today’s environmental and petroleum laboratory.
Using the 20-position solid autosampler it’t the perfect configuration for total chlorine in solid samples like in coal (ASTM D-6721) while the optional ND-100 Nitrogen detector can measure total nitrogen below 1 ppm.
Fully compatible with ASTM, EPA and Standard Methods protocols, the NSX-2100 is the instrument of choice for the measurement of Total Chlorine, Sulfur and Nitrogen in many applications.

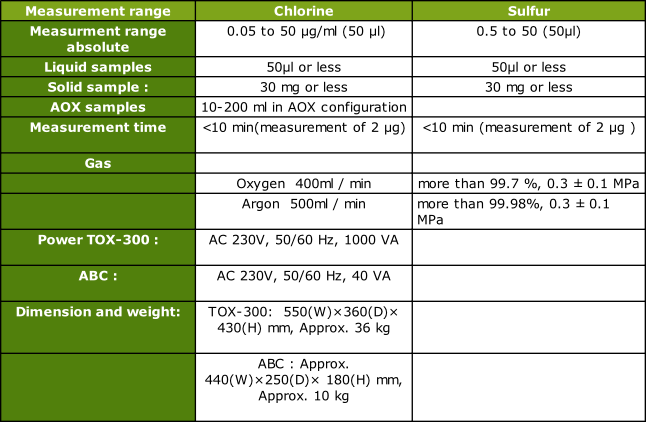

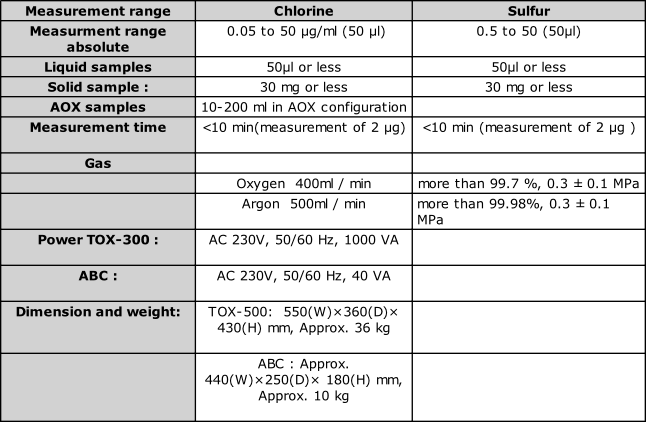

Performances : Measure Total Chlorine or Sulfur with one instrument
- Chloride 0.05 – 50 ug
- Sulfur : 0.5 – 50 ug
- Measure TOX/AOX/EOX with same instrument configuration, POX with optional module
- Total Chlorine, Sulfur and TOX/AOX/EOX by Oxidative Combustion Microcoulometry
- Available Autosampler:
- 50-Position ( ASC-500 XYZ Liquid Autosampler)
Typical applications:
- Petrochemical, Refinery Products & Fine Chemicals Plastics, Polymers & Rubber
- Gasoline, Diesel & Jet Fuel
- Ethanol, Biodiesel & Alternative Fuels
- Surface Water
- Groundwater
- Wastewater & Drinking Water
- AOX EOX and POX DIN methode
- AOX EOX and POX EN methode
- EPA Methodology 450.1, 1650, 9020, 9021, 9023 & 9076
- Standard Methods 5320
- Meets requirements of 40 CFR 265.92. for drinking water, wastewater and ground water ICR (Information Collection Rule) and DBPR (Disinfectant/Disinfection Byproducts Rule)
- LDPE Film ( Low-Density Polyethylene )

Ask for info
Are you concerned by AOX /EOX/ POX measurement ?
ALL you need is here ! you are just a phone call away to receive the best quote ever
Call us NOW at +41 24 435 22 02
ABC-500
This module is in charge to introduce the ceramic vessel with sample into the oven.
The sample will be driven at different place in the oven in order to modify the combustion temperature and get the best possible pyrolysis at the shortest time
ASC-500
This module is in charge to pick up liquid samples and inject them into a ceramic boat driven by the ABC-500 module.
The autosampler is fully automated and can accept up to
The sample will be driven at different place in the oven in order to modify the combustion temperature and get the best possible pyrolysis at the shortest time

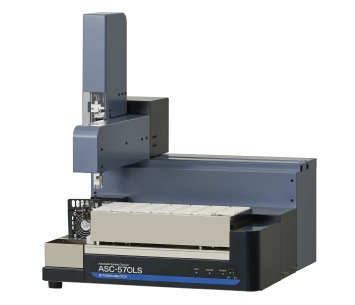

ASC-570 LS solid-liquid autosampler
If you need to have a fully automatic instrument, this module it the best choice. Available for liquid samples and solid samples
Samples tray type for standard 2 or 4 ml Vial for liquid samples
Boat tray for solid and non-volatile or viscous samples
Sample volume Liquid: 100 µl or less
Solid: 150 mg or less
Liquid
Injection system Gastight Microsyringe 25, 50, 100µl
Sample container Vial with a septum, 2 ml or 4 ml
Sample vial quantity 2 ml: 120 pcs / 4 ml : 84 pcs
Solid
Sample boat in high precision Ceramic (Standard)
Sample boat quantity : 49 pcs
Electronic Boat cooling (Peltier)
Power supply AC 100/115/230/240V, 50/60Hz, 192VA
Mass and weight 500(W) x 460(D) x 600(H), Approx. 27kg

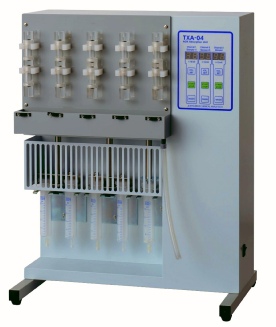

Automated column enrichment module TXA-04
Syringe Disposable syringe 20 ml
Flow method: Automatic syringe system
Maximum Flow Volume:
Syringe for flowing samples: 300 ml (10 × n ml (n=1 to 30))
Syringe for washing: 50 ml (5 × n ml (n=1 to 10))
Syringe quantity 5 pcs (for flowing samples or washing inorganic halide)
Column 3 mm φ x 40 mm, two stage glass column
Power AC 100V to 240V, 50/60Hz, 50VA
Dimensions Approx. 480 (W) x 270 (D) x 530 (H) mm
Weight Approx. 13kg
The activated charcoal columns packed in set of 100 pces and are certified low blank values. The simple, cost-effective and safe solution for your lab. The columns can be used for AOX analysis as well as for AOF determination in combustion-IC and the splitting of AOX into AOCl, AOBr and AOI.
Key Features
– Gas-tight packaging
– 100 columns per pack
– Time and cost saving
– Shelf-stable
– Safe handling
– Easy disposal (waste glass)
– Narrow particle size distribution of the activated carbon
– Quality controlled: Packs with lot number and date.
Standard methods
DIN EN ISO 9562
EN 1485
DIN 38409-H14
DIN 38409-H22
DIN 38409-59
